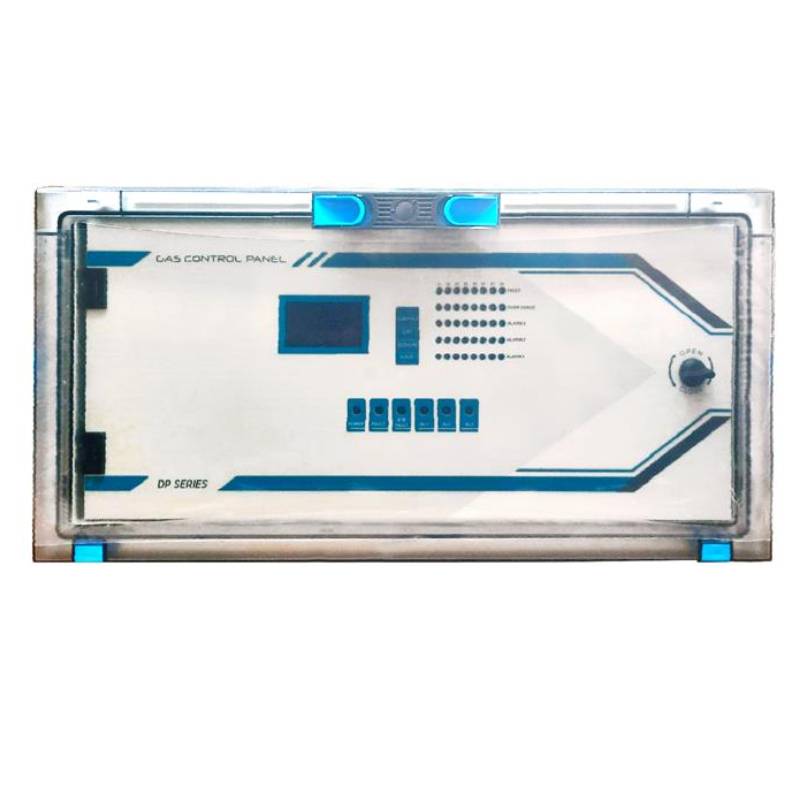

Prosense S-DPX032 Digital&Analog Gas Control Panel
S-DPX32 Gas Control Panel is designed to manage the combustible, toxic, and oxygen gas detectors via Modbus RS485 and Analog communications. Cloud-based data acquisition provides real-time monitoring of system status using ethernet or wireless connection options.
• Input: 8 x 4-20mA and 2 x Modbus RS485 inputs(16+16)
• Display: Bright and clear OLED display
• Integrity: Easy integration to SCADA, BMS, HMI systems via Modbus RS485 output
• Relay: 3 Alarm, 1 Fault, and 1 Overrange adjustable relay contacts.
• Logging: Stores all alarm, fault, and maintenance events up to 500 events to provide a history of detectors connected
• Cloud: Cloud-based data acquisition provides real-time monitoring of system status using ethernet or wireless connection options
• Analouge Module: Any 4-20mA analogue detector can be integrated into MODBUS chain with an optional analogue module
• Intelligent System: Smart system software automatically identify the detectors and allows the settings adjustment from controller’s menu
• Zone: Up to 8 digital zones creation and detectors agroupment available for suiting the site conditions
• Monitoring: Continuously monitoring of 40 detectors’ gas concentrations and overall system status
• Diversification: Different gas detectors in different measuring ranges(ppm, LEL, VOL) can be connected to DPX controller.
• Body: PC(Polycarbonate) superb performance under harsh environmental conditions with IP66 protection class.
• Visual/Audial: LED indicators and buzzer
• Modular: Modular structure allows the user specific installation and provide efficiency during the maintenance.
