MethaneTrack Automated Emissions Monitoring

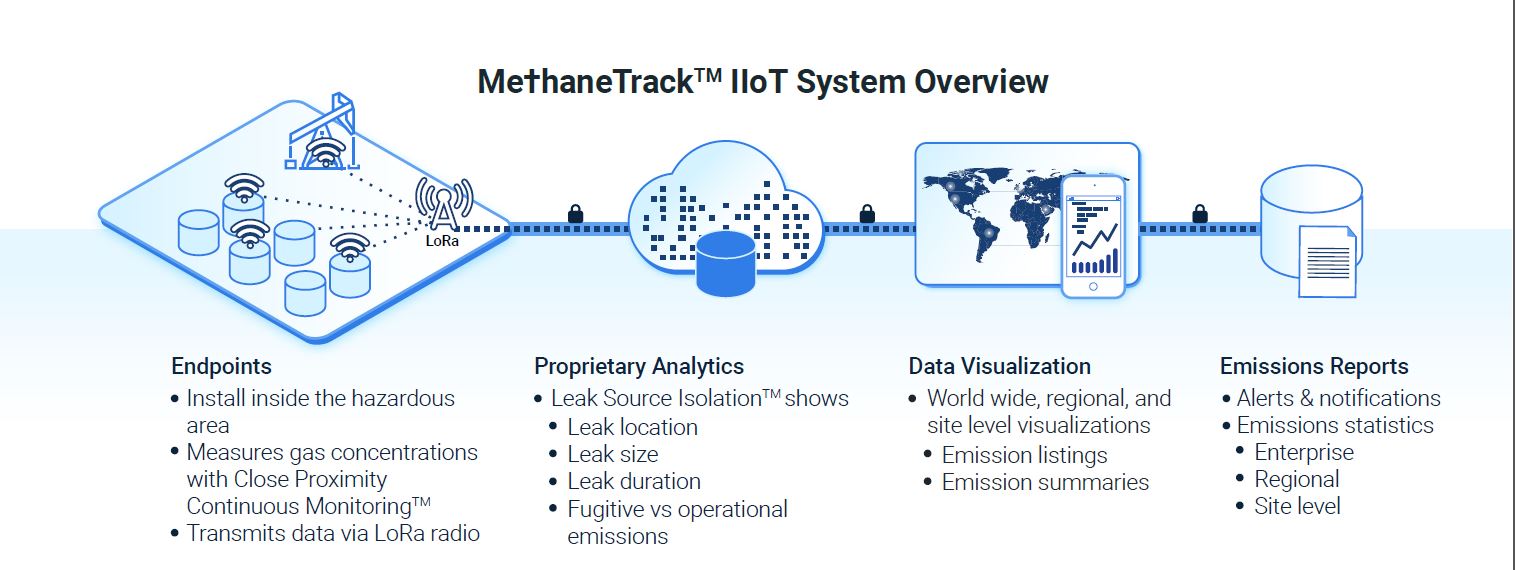

NevadaNano’s MethaneTrack™ is a complete Industrial Internet of Things (IIoT) system used to detect and quantify methane emissions for upstream, midstream, and downstream oil and gas operations. As a real-time monitoring system, it quickly detects detect and identifies the location and size of methane and methane-blend leaks, enabling the rapid repair and reduction of methane emissions. MethaneTrack reduces costs by replacing manual monitoring, and is designed to meet regulatory requirements to help companies meet their sustainability and ESG goals.

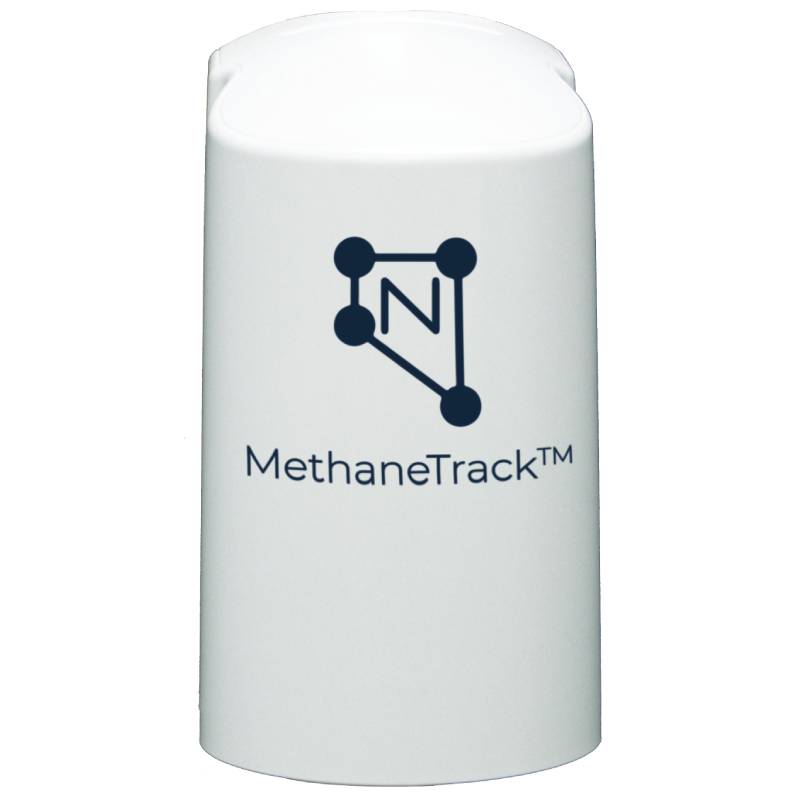

MethaneTrack™ endpoints are certified Intrinsically Safe, which means they can be installed inside the hazardous area and mounted next to–or even on–a
potential leak source. NevadaNano calls this method Close-Proximity Continuous Monitoring™ – a breakthrough approach that enables immediate detection to obtain the most precise measurements of emission location and emission rates, due to proximity to the emission source.

Key Benefits: –

• No field calibration
  Immunity to saturation and poisoning and no field
  calibration eliminates the prohibitive cost of quarterly
  calibration trips & sensor replacements.
• Highly accurate detection powered by The MPS
  Detection range from 50 to 1M ppm with built-in
  environmental compensation for temperature, relative
  humidity, and pressure for near-zero false positives.
• Very wide operating range & self-testing
  -40°C to 75°C operating range with up to 100% relative
  humidity. Built-In Self-Test (BIST) capability continuously
  evaluates the system to ensure it is operating to specification.
• 5-year battery life and 15-year sensor life
  No wiring and long battery and sensor life reduces the need
  for frequent on-site visits and ensures uninterrupted
  monitoring.
• Certified as Intrinsically Safe
  Class 1, Div. 1 and Zone 0 certified and global safety
  certifications such as FM, CSA, IECEx, ATEX, and IP65+.
